Set the saved Pedal position and sweep range. The actual position also reflects applicable smoothing, stereo offset and modulation.
Sweep / Resonance / Movement — Free early releaseWah Vector.
Wah Vector.
Give the note a gesture.Free wah & filter effects VST3 plugin for Windows
Original algorithms
Free personal & commercial audio use
Free personal & commercial audio use
From a controlled pedal sweep to responsive envelope movement, rhythmic steps and MIDI-driven gestures. Twelve original filter voices with a clear view of the position and resonance.
v0.1.0 / FreeWindows x64VST3 + Standalone
Requested pedal guides stay distinct from actual sweep-frequency/Q markers. The base SWEEP Hz readout is not a universal resonance-peak label; multi-branch models are described by the response curve. The small-signal wet filter response excludes nonlinear Drive and full wet/dry Mix; FFT is measured signal.
12 original models
Resonant wah, true filter shapes, formants and paired peaks
7 sweep sources
Manual, Envelope, LFO, Step, MIDI Pedal, Note Trigger and Hybrid
112 controls / 40 recipes
Six primary knobs, discoverable views and complete A/B banks
4x / 48 sample PDC
Resonant/nonlinear processing with aligned dry and bypass
Twelve original filter behaviorsShape the sweep.
Shape the sweep.
Hear the gesture.
Generic behavior-inspired models with distinct filter structures. No exact manufacturer clone, measured circuit or hardware identity is claimed.

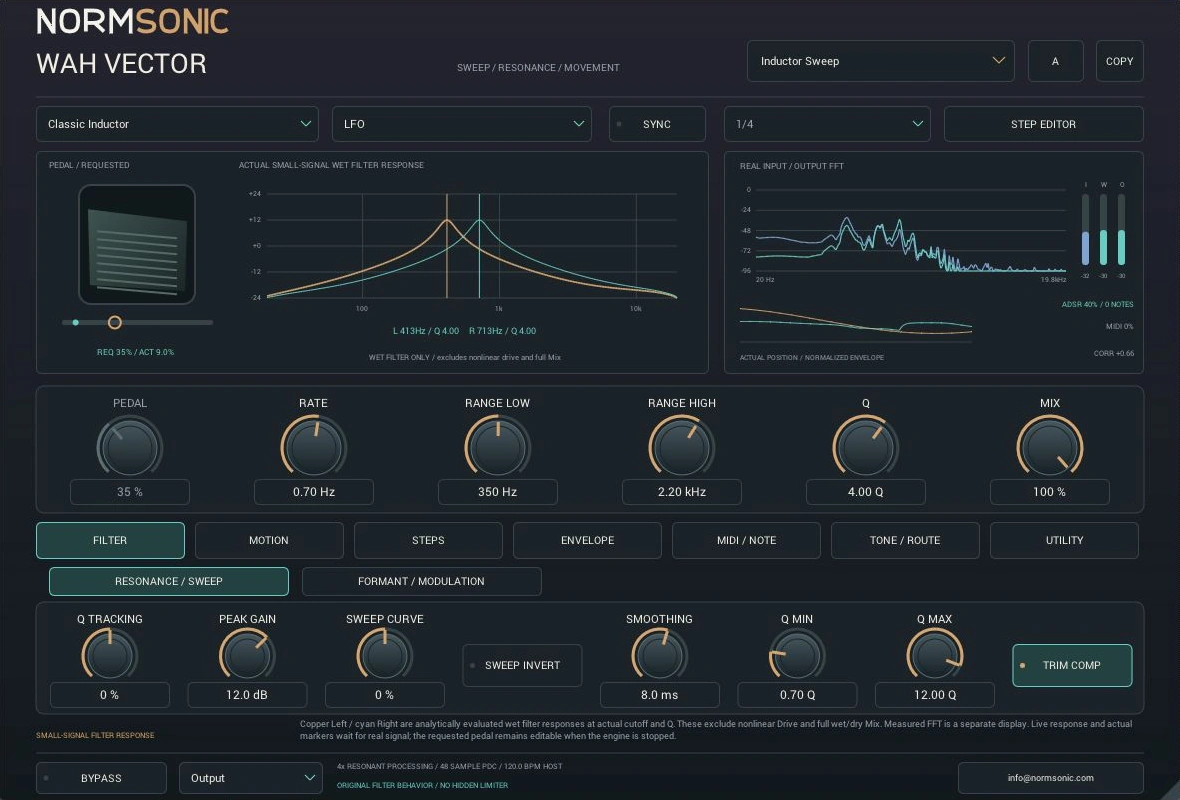

Selected filter
Classic Inductor
A focused, original resonant sweep inspired by the familiar inductor-wah gesture.
Start with a moderate Q and useful sweep limits. Compare output headroom before increasing Drive or Boost.
A recorded phrase. Twelve sweeps.Keep the note.
Keep the note.
Change the motion.
OFF/ON keeps the same timeline. Changing model keeps the current comparison playing while the new pair loads.
Recorded performances, processed by the actual WAH VECTOR engine: active individual phrases and the complete 2:50 song. Each comparison declares its settings and original source credits.
Loading recorded comparisons…
Six primary controls / 112 stable parametersOne gesture.
One gesture.
Many directions.
Pedal, Rate, Range Low, Range High, Q and Mix stay visible. Labelled Filter, Motion, Steps, Envelope, MIDI/Note, Tone/Routing and Utility views expose every control.
A real internal Peak/RMS or external RMS detector shapes the sweep. Attack, Hold, Release, signed amount and normalized curve stay explicit.
Choose waveform, physical rate or synced divisions. Hybrid combines manual, envelope, LFO and triggered contributions within safe limits.
Edit stable step positions without renumbering IDs. Rate or Division is per step; Count sets the complete cycle length.
Route CC pedal and notes through the host. Channel, calibration, smoothing, independent bypass CC and retriggerable ADSR are discoverable.
Q limits, formants, explicit drive, tone, bass protection, stereo routing, monitors and real spectrum controls are separate and saved.
WAH VECTOR / Your next sessionFind the range.
Find the range.
Keep the dynamics.
Windows installation
Extract the complete ZIP and keep the whole WAH VECTOR.vst3 bundle together. The user destination is %LOCALAPPDATA%\Programs\Common\VST3; add it to REAPER's VST paths and rescan.
Contact NORMSONIC with the host, Windows version and issue.
Does the graph include saturation and dry mix?
The analytic small-signal response describes the current wet filter at actual base sweep frequency and Q. Wide, paired, formant and synth structures can place their individual branch resonances elsewhere. Live response and actual markers wait for running audio with real signal. Nonlinear Drive and the complete Mix transfer are excluded. Input/output FFT shows real measured signal separately.
Can I use an expression pedal?
Route the pedal's MIDI CC through your device and DAW. Select the controller and MIDI channel, then calibrate the range. The plugin does not directly detect a hardware pedal.
What happens with no external detector?
Requested but missing auxiliary falls back to internal RMS; a connected silent auxiliary remains external. Missing external monitoring is silent.
Is the Schmitt gate an audio noise gate?
No. Gate Threshold and Hysteresis govern envelope-trigger crossings for ADSR. They do not silently gate the main audio.
Free early release / 0.1.0Put motion
Put motion
in the phrase.
The Windows build passed native DSP checks, strict pluginval level 5 and VST3 SDK validation. In tested REAPER sessions, all 112 controls and ten saved-state reopen cycles were verified; static renders matched the engine within half a 24-bit PCM step. MIDI CC, note behavior and active automation were checked separately. These are scoped checks, not a guarantee for every host or configuration.
Windows x64
Compiled VST3 plugin and Standalone. Free personal and commercial audio use; publisher-owned source remains private.
1.25 MiB ZIP / SHA-256: aa0d09da3147f584c77d8b126ae3e85f028bf3fdfcba583f33f5ac377c1877bb
macOS
No Mac binary is built, tested or available. The intended release is Windows only.
